How to Badge on the Taqt One?

How to Badge on the Taqt One?

In order to preserve battery life, the NFC badge reader on the Taqt One is not constantly scanning for badges. Therefore, it is necessary to press a button to activate the badge reading.
This button to activate NFC can be:
  1. The one at the bottom left (in the case of standard clocking), or
  2. One of the 5 main buttons (for targeted clocking).
Notes
The NFC activation lasts for 5 seconds. During this time, a red LED flashes at the top right of the terminal, and any action other than badging will not be recognized by the terminal.

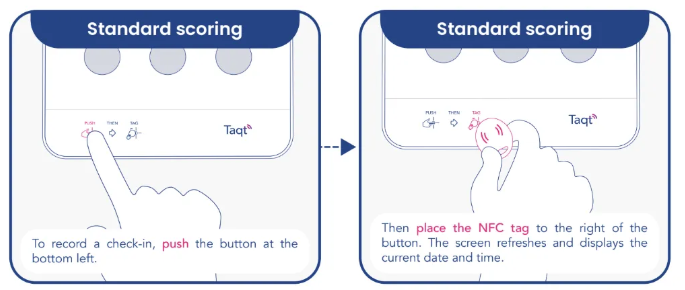

Standard Clocking

Standard Clocking

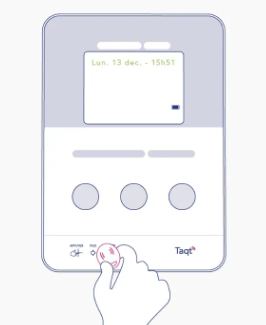

After badging, the date and time of the clocking will be displayed on the screen:

Time and Date display on the screen

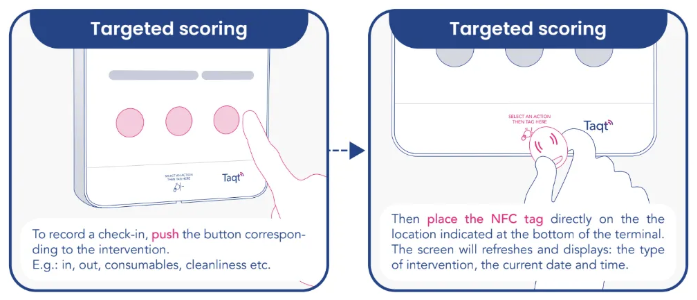

Targeted Clocking

After badging, the type of action corresponding to the button pressed (Entry/Exit/Cleaning, etc.) along with the date and time of the clocking will be displayed on the screen.
​
Targeted Clocking
