How To Use the Taqt One Buttons?

How To Use the Taqt One Buttons?

Number of buttons

The TaqtOne device features up to **5 configurable buttons**. They can be activated or deactivated remotely, requiring only a simple change of the front panel to match the selected configuration.

Standard use cases:
  1. No buttons (simple check-in)
  2. 2 buttons (in-out)
  3. 3 buttons (smileys, interventions)

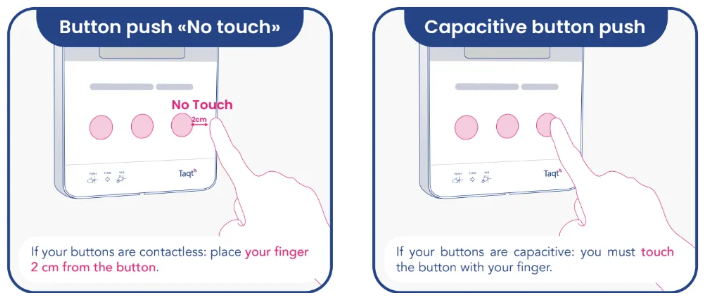

Contactless Mode

The buttons can operate in the following modes:
  1. "Capacitive", requiring physical touch
  2. "No touch", functioning without contact

Contactless mode is available only for configurations with 1, 2, or 3 buttons. For 4 or more buttons, the system switches to “capacitive” mode to avoid unintentional presses.

Acknowledgment of Presses - Delay Setting

By default, there is a **3-second delay** between each button press to prevent accidental activations. During this time, no additional inputs are registered. This delay can be shortened or extended based on your needs.

To adjust the settings of your TaqtOne, you can open a ticket.
