Visualize on-site data with View

Visualize data with View

The Ubiqod platform enables you to configure QR codes and connected devices (called trackers) to monitor field activity. All configuration tools are centralized in a workspace called Build.

To visualize data, you must access the View workspace. It offers a simple and efficient solution to view and download events and field data, tailored to your specific use case.

Configuring View

For your trackers to send data to View, you must configure and associate the connector suited to your desired visualization in Build.

Accessing View

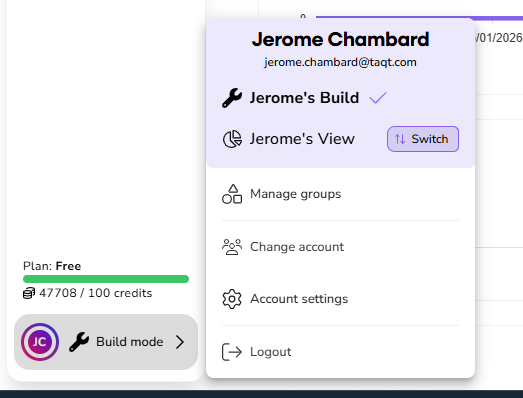

To switch from Build to View mode, click on your name at the bottom left of the screen, then click Switch next to [Your Name]'s View.



You will then have access to a dedicated space for viewing your data:

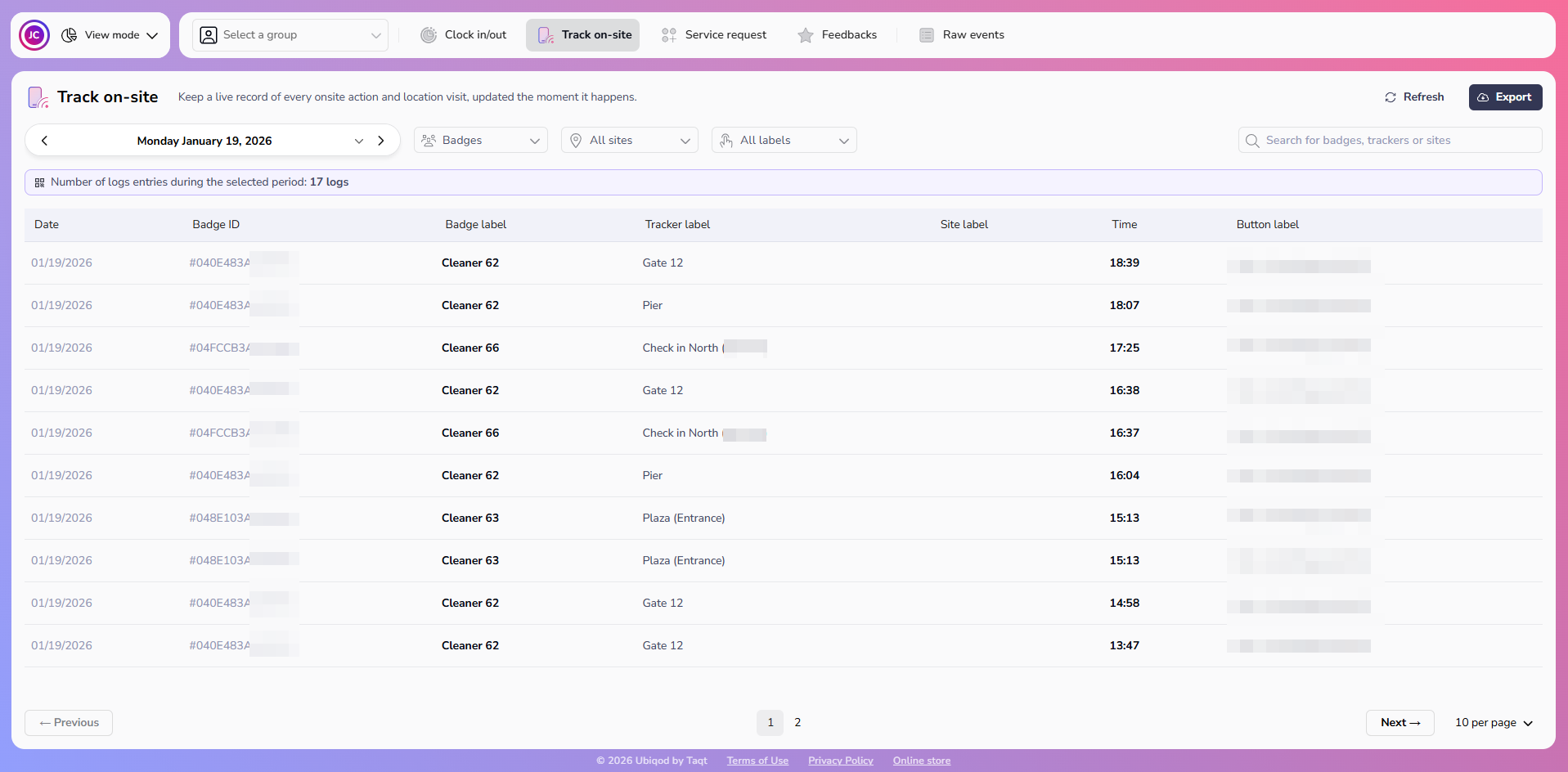

Proof of presence on-site with Taqt View


Info
Access to View depends on your subscription plan. If you wish to use it but do not see the associated menu, you can contact support.

Visualization Types (Use Cases)

The View interface allows you to select the type of collected data, defined by the use case of each tracker.

Clock In / Out

This visualization is suitable when you want to track the time teams spend on a site. Each person equipped with a personal badge must clock in upon arrival (in) and clock out upon departure (out).

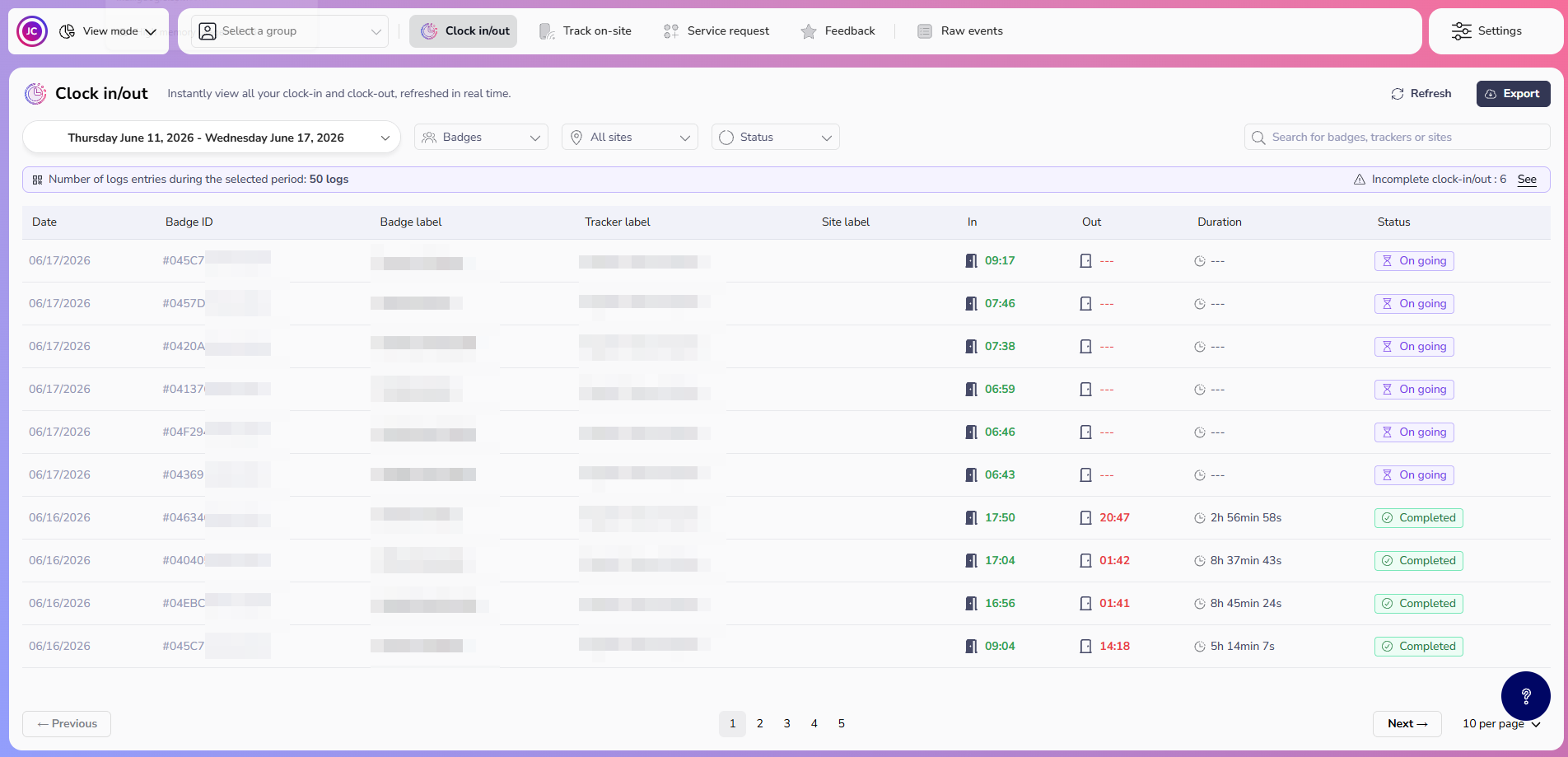

Clock in and clock out visualisation in View

Available columns:
  1. Date
  2. Badge ID (raw)
  3. Badge Label (can be the employee name for instance)
  4. Tracker Label (can be the exact location of the device inside a building)
  5. Site Label
  6. Clock In time (in)
  7. Clock Out time (out)
  8. Duration (filled when shift is completed)
  9. Status
Product compatibility:
  1. TaqtOne with In / Out buttons
  2. Clock S with In / Out buttons
  3. Clock R
  4. Clock E with In / Out buttons
  5. SafeQod (formerly Ubiqod Key) with a clocking interface

Site Monitoring (attendance tracking)

This visualization is suitable when you want to track team visits to a site, for example, for the contractual monitoring of a cleaning contract. Each person equipped with a badge (named or generic) must present it when performing a service.

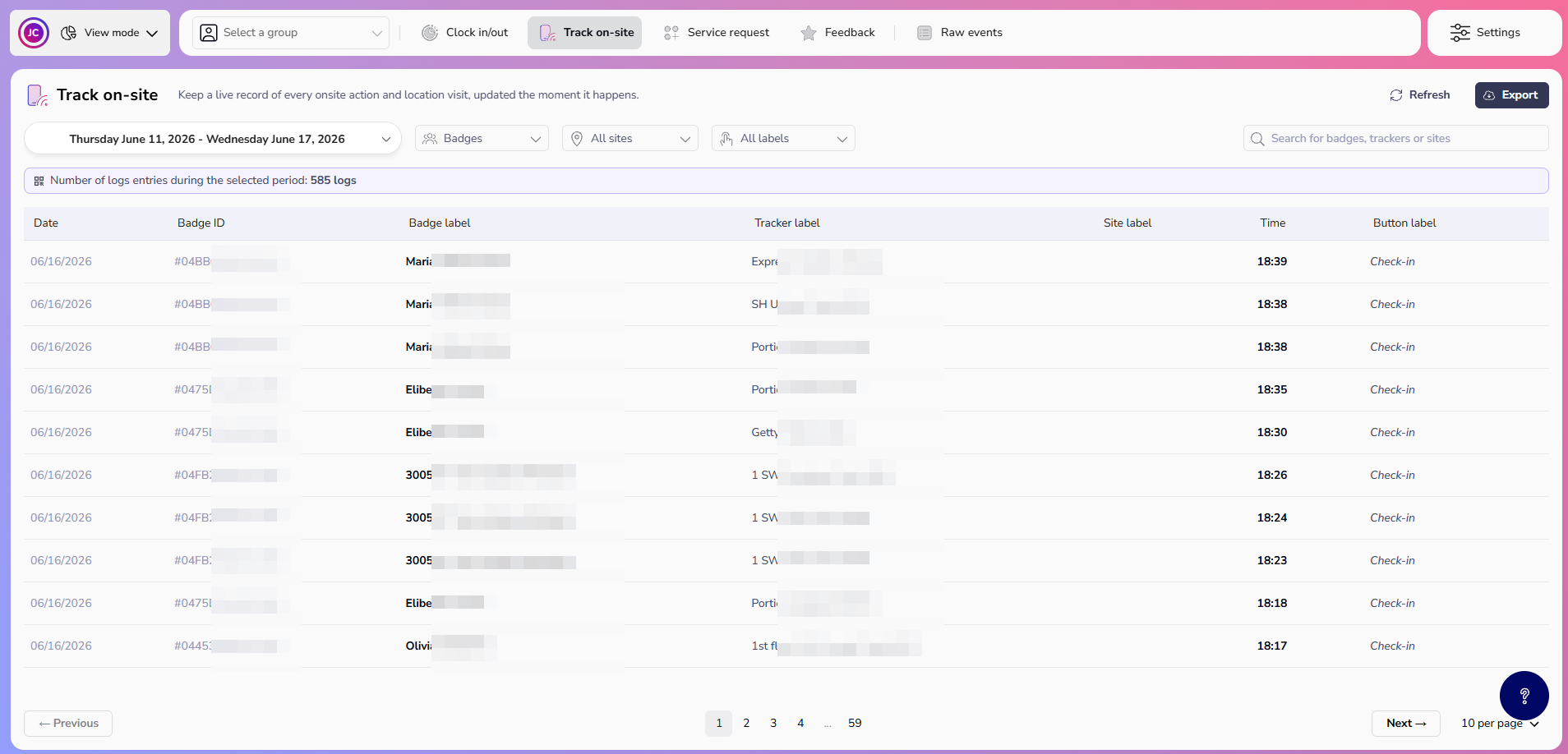

Attendance tracking visualisation in View

Available columns:
  1. Date
  2. Badge ID (raw)
  3. Badge Label (can be the employee name for instance)
  4. Tracker Label (can be the exact location of the device inside a building)
  5. Site Label
  6. Time
  7. Button label (custom label associated with the badging action)
Product compatibility:
  1. TaqtOne without buttons
  2. Smilio S
  3. Clock S
  4. Clock R
  5. Clock E
  6. SafeQod (formerly Ubiqod Key)

Service Request

This visualization allows a person to report an issue and trigger appropriate service requests, for example, for a water leak or a lack of soap in the restrooms.

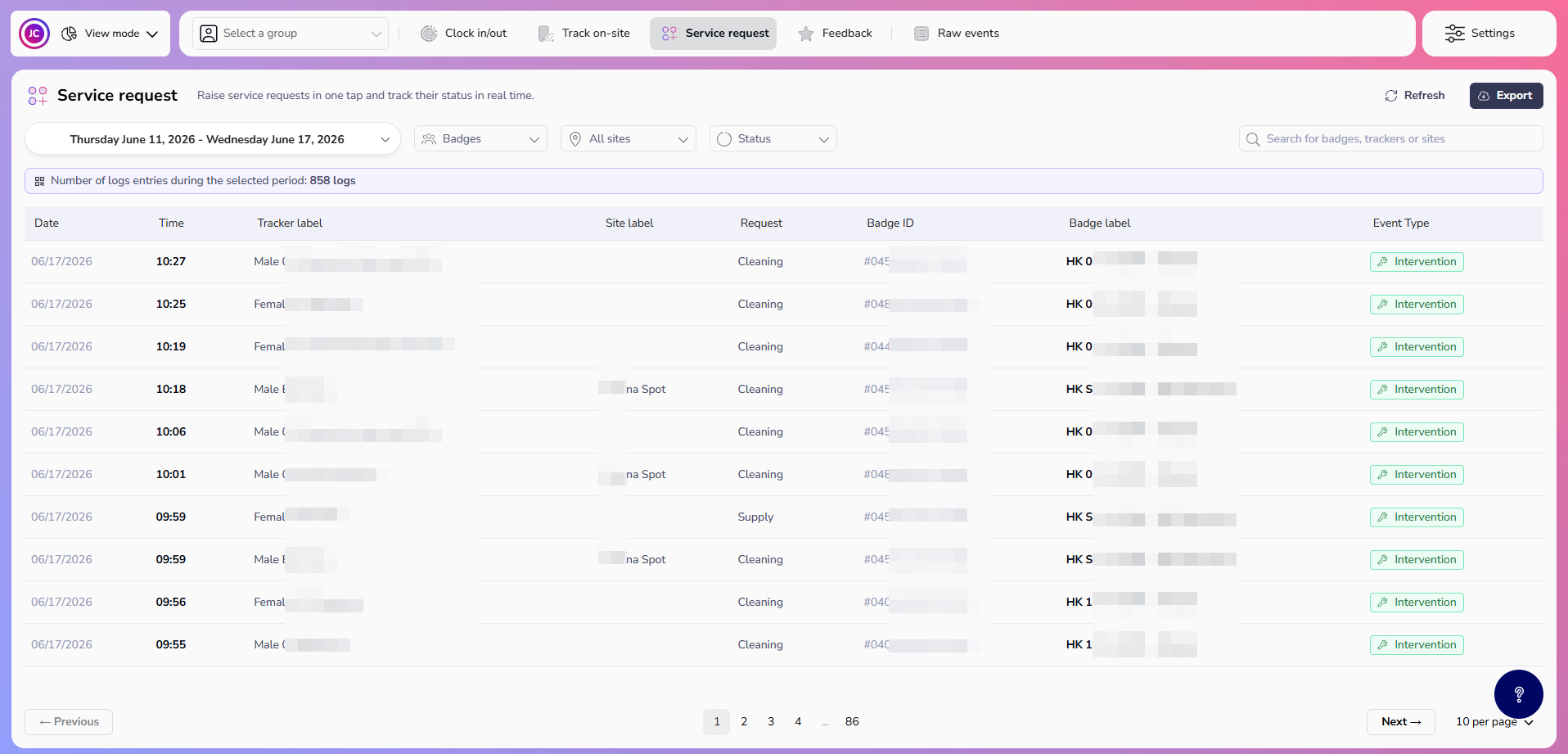

Service request visualisation in View

Available columns:
  1. Date of the request or event
  2. Time of the request or event
  3. Tracker Label (can be the exact location of the device inside a building)
  4. Site Label
  5. Request
  6. Badge ID (raw)
  7. Badge Label (can be the employee name for instance)
  8. Event type
Product compatibility:
  1. TaqtOne with service request buttons
  2. Smilio S
  3. Clock S
  4. Clock E
  5. SafeQod (formerly Ubiqod Key)

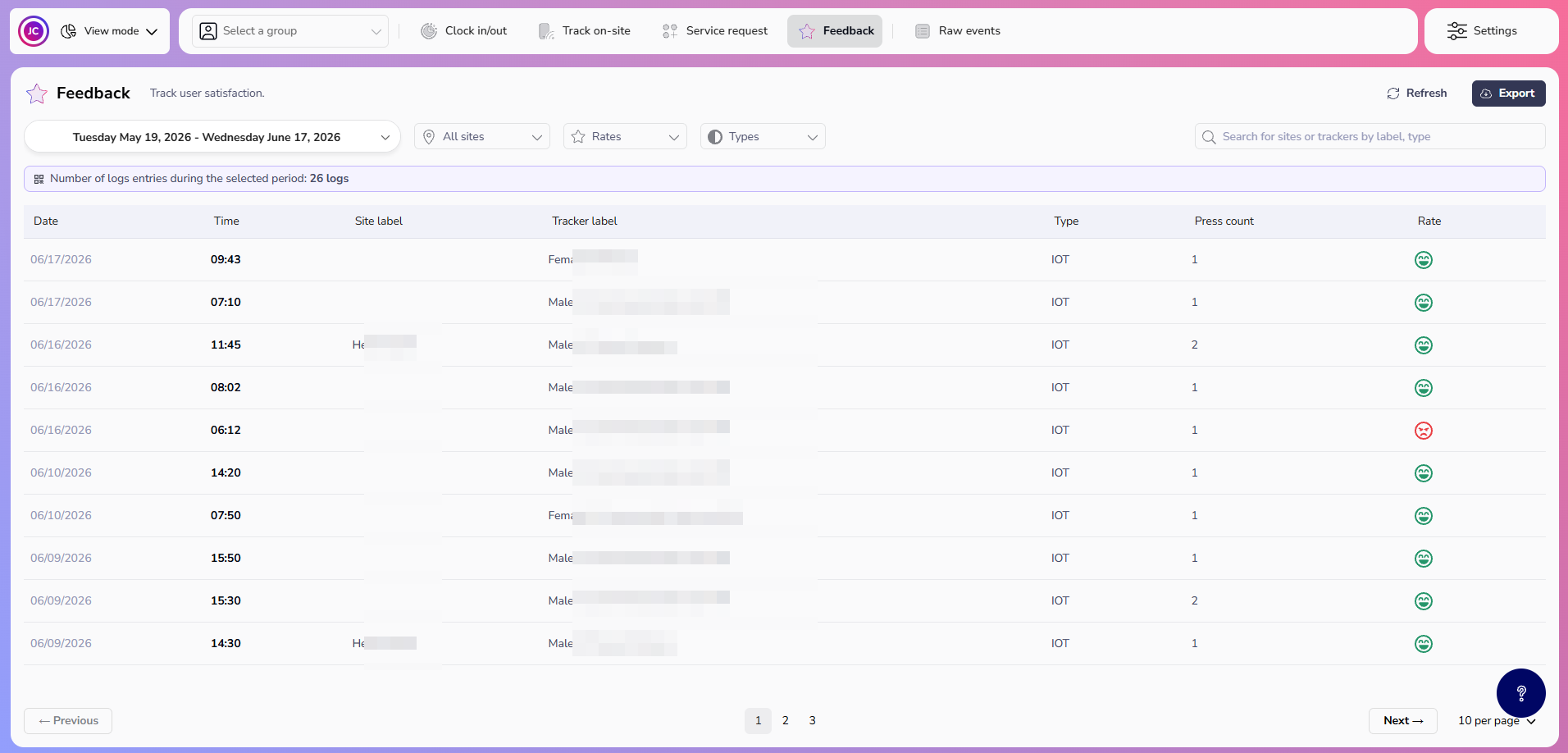

Satisfaction / customer feedback

This visualization allows you to measure customer and user satisfaction in real-time, for example, to assess the cleanliness of a space.



Available columns:
  1. Date of the feedback
  2. Time of the feedback
  3. Site Label
  4. Tracker Label (can be the exact location of the device inside a building)
  5. Type of device used to collect the feedback
  6. Press count (how many time this feedback was given in the time slot)
  7. Rate / feedback
Product compatibility:
  1. TaqtOne with Smileys
  2. Smilio S with Smileys
  3. Clock E with Smileys
  4. SafeQod (formerly Ubiqod Key)

Raw Events

This visualization allows you to view all types of data in a generic format, enabling their use for other use cases.

Export

You can export data using the integrated planned and instant export features.

    Try Ubiqod

    Get 100 free credits to start building with Ubiqod: sign up here
